Jacksons Estate Railings

Estate railings are strong, adaptable and cost effective replacement for the traditional flat bar railings.

Product Information

  • Estate railings correspond(s) to the generic component/material “steel” in the BRE Global Guide online generic specification(s) “Galvanised steel railings” which achieve(s) a summary rating of B within commercial, domestic, residential, health, industrial, education.
  • Tubular and rectangular hollow section construction
  • All fittings galvanised or stainless steel
  • Matching single leaf and double leaf gates available
  • 25-year service life guarantee

Finishes

  • Hot dip galvanised to BS EN ISO1461 as standard
  • Hot dip galvanised and powder coated to BS EN 13438
  • Marine coat for installations within 500m of salt water or estuary

Standard Colours

  • Black RAL 9005
  • Green RAL 6005
  • Other colours are available on request

Panel Specification

Height (mm) Overall Panel Width(mm)
Post Dimensions (mm)
Rails (mm)
1200 2000 50 x 25 19Ø

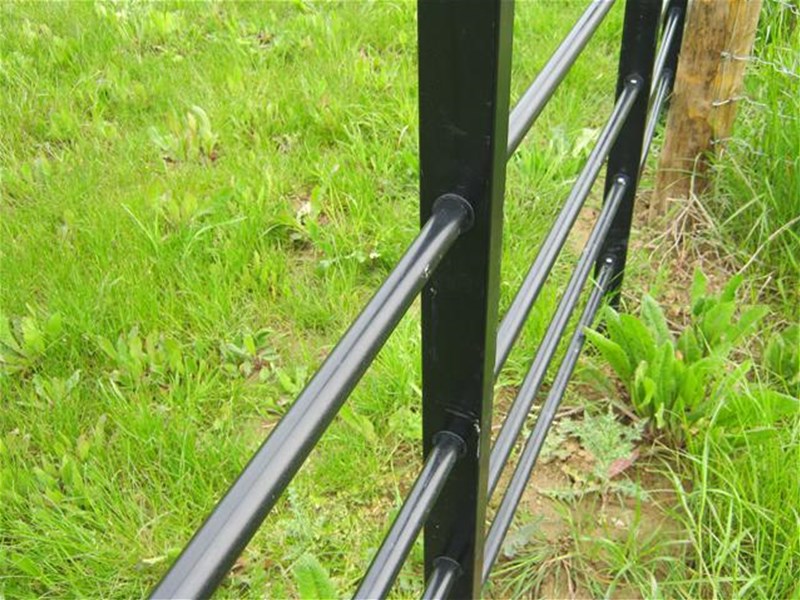

Estate railings are constructed from 50 x 25 x 2 Rectangular Hollow Section posts with ø19mm circular hollow section rails, with overall panel width at 1980mm.

Gate Specification

Height (mm) Width (mm)
1215 1200
1215 3000
1215 3600

Post Options

  • Over length set in concrete as standard
  • Base plated to bolt down onto concrete
  • Cranked to suit wall mounting
